Replicating RouteLLM on Amazon Bedrock

21 September 2026. Code, labels and stored responses: github.com/bfeeny/paper-to-aws-routing.
I work at Amazon Web Services. The views and assessments here are my own and do not represent AWS.

Abstract

Learned LLM routers promise to send each request to the cheapest model that can answer it, deciding from the prompt alone before any model is called. We reproduce this setting on Amazon Bedrock, using the RouteLLM formulation and an AgentCore Gateway request interceptor as the deployment point. Our labels come from a cheapest-sufficient-tier cascade (Claude Haiku 4.5 → Sonnet 4.6 → Opus 4.5) over 7,222 unique exact-graded items. Every prompt-only router we trained posts a strong in-distribution AUC (up to 0.865). Almost all of it is recognition of which group a prompt came from. A within-group label shuffle keeps 99.5% of the AUC on BBH (0.838 vs 0.842). A paired cluster bootstrap cannot separate any router from a group-base-rate oracle on any of three datasets. Under leave-one-group-out evaluation, both a linear probe on frozen embeddings (equivalent to RouteLLM’s matrix-factorization router for a fixed pair) and a fine-tuned encoder fall to 0.52–0.60. Similarity-weighted ranking scores below chance even in-distribution. The shortfall is not a measurement artifact. The labels are reproducible (per-tier test–retest κ = 0.88–0.97) and support an AUC ceiling of 0.912. The frozen embedding does encode human-assigned difficulty (probe AUC 0.57–0.78 within subject). We apply the same diagnostic to RouteLLM’s own MT-Bench evaluation set. There, category identity alone reaches AUC 0.693 on the published labels. Finally, a deferral rule that escalates on the cheap model’s own output length, at no extra inference cost, reaches 0.752 under leave-one-group-out on MATH, where prompt-only routing reaches 0.600. We release the diagnostic suite and argue that routing evaluations should report group-held-out results as standard.

Introduction

Serving every request with the strongest available model is simple and expensive. On Amazon Bedrock the price ratio between Claude Opus 4.5 and Claude Haiku 4.5 is roughly five to one per token. Yet most production traffic does not need the stronger model. A router decides per request, and a prompt-only router decides before spending anything. It reads the prompt, predicts whether the cheap model will suffice, and dispatches accordingly. RouteLLM [1] trained such routers on preference data and reported large cost reductions at small quality loss on MT-Bench.

We set out to reproduce that result on AWS, with the router in the request path of a managed gateway rather than in client code. The gateway plumbing worked. The result did not reproduce, and working out why became the paper.

Our central claim concerns what prompt-only routers learn, not whether routing is possible:

On every dataset we tested, including the MT-Bench set on which the original gains are reported, the in-distribution performance of prompt-only routers is predominantly explained by recognizing which group (benchmark, task, subject, or category) a prompt belongs to, and recalling that group’s escalation rate. This is a legitimate router for a fixed traffic mix and a useless one under drift. Standard item-level evaluation cannot tell the two apart.

We support the claim with an elimination argument. We rule out, in turn: insufficient labels, router architecture, representational capacity, label noise, and a frozen encoder. What remains is the task formulation itself. We then show that a different formulation works where this one does not. That formulation is deferral on the cheap model’s own response.

Contributions.

A diagnostic suite for routing evaluations: within-group label shuffle, leave-one-group-out, and a paired cluster bootstrap against a group-rate oracle. We also note where the shuffle becomes unreliable (§3.2).
An elimination study showing that the gap between achievable (0.912) and achieved (~0.55) cross-group performance is not explained by label count, architecture, representation, label noise, or encoder fine-tuning (§4).
A label-stability measurement for cascade labels. Reliable per-call grading composes into a substantially less reliable ordinal label (§3.3).
Application of the diagnostic to RouteLLM’s published MT-Bench evaluation set (§5).
A zero-cost deferral baseline that survives group-held-out evaluation where prompt-only routing does not (§6).
Two data-quality findings: a tier-correlated grading bias that manufactures escalation, and 1,313 identical-response battles in a widely used public routing dataset (Appendix A).

Setup

2.1 Deployment

Requests enter an Amazon Bedrock AgentCore Gateway addressed to a virtual model ID. A REQUEST interceptor (AWS Lambda) decodes the body, computes a routing decision, and rewrites the model field to a concrete target-qualified ID before the gateway resolves routing. The client never names a real model. Every decision is emitted as a CloudWatch embedded-metric record carrying the score, the decision, the interceptor latency, and the prompt length. The prompt-only router ships as JSON weights and scores with one Amazon Titan Text Embeddings V2 call plus a 256-term dot product, about 110 ms end to end. The stack is plain CloudFormation plus a Makefile and deploys and tears down with one command.

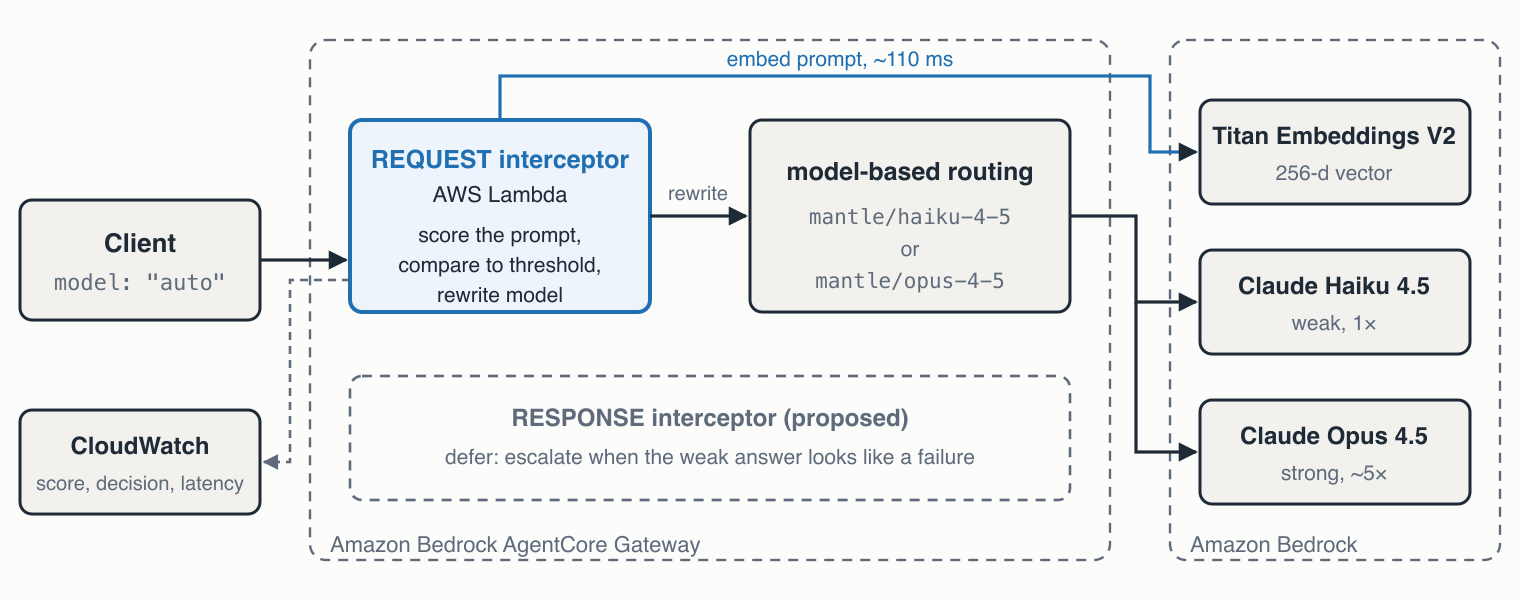

Figure 1. The request path. The client asks for a virtual model; the REQUEST interceptor embeds and scores the prompt and rewrites the model field before the gateway resolves routing. The dashed RESPONSE interceptor is where the deferral policy of §6 would run; it is proposed here, not evaluated live. Configuring and operating this path is the subject of a companion paper.

2.2 Labels

Cascade labels. For each item we query Claude Haiku 4.5, Sonnet 4.6 and Opus 4.5 in order at temperature 0. We stop at the first tier whose answer grades exactly correct. The item’s label is that tier’s index $t \in \{0,1,2\}$ , or $t=3$ if no tier answers. For binary routing we use

y = \mathbb{1}[\,t \in \{1, 2\}\,],

meaning escalating above the cheap tier changes the outcome. Items that no tier answers are negatives, because paying for Opus when Opus also fails is not a win. We report the alternative coding $y = \mathbb{1}[t \ge 1]$ where it matters.

dataset	items	groups	$P(y=1)$	Haiku / Sonnet / Opus / none
Mixed (GSM8K, MMLU, MMLU-Pro, BBH, MATH L4–5)	2,709	5 benchmarks	12.2%	82.3 / 8.7 / 3.5 / 5.5
BBH, all 27 tasks	2,430	27 tasks	27.7%	67.6 / 14.2 / 13.5 / 4.7
MATH, levels 1–5	2,520	7 subjects	7.8%	87.4 / 6.0 / 1.7 / 4.8

On MATH, escalation rises with human-assigned difficulty level: 2.7%, 2.4%, 5.6%, 6.8% and 16.0% for levels 1–5, flat across the first two and steep at the top.

Preference labels. We also use RouteLLM’s released gpt4_judge_battles (109,101 battles) and mmlu_battles (1,531). All are for the single pair GPT-4-1106-preview vs Mixtral-8x7B-Instruct, binarized as GPT-4 won outright (9.4% positive).

2.3 Routers

arm	description
Linear probe	Titan V2 embedding (256-d) → L2 logistic regression
SW ranking	RouteLLM’s similarity-weighted ranking, reimplemented on Titan features
Fine-tuned encoder	`bge-small-en-v1.5` fine-tuned end to end, class-weighted
Prompt length	$\lvert \text{prompt} \rvert$ in characters (the AgentCore interceptor documentation’s example rule)
Group oracle	training-set escalation rate of the item’s group
Deferral	features of the cheap model’s response (§6)

On matrix factorization. For a fixed model pair, RouteLLM’s MF router is already covered by the linear probe. MF scores a prompt embedding $e_q$ against learned model vectors $v_s, v_w$ as

P(\text{strong wins} \mid q) = \sigma\!\left((v_s - v_w)^{\top} \operatorname{diag}(w_2)\,(W_1 e_q + b)\right),

which is linear in $e_q$ . With two models, the low-rank structure adds nothing, so the linear probe on Titan features is the MF router on different embeddings. On SW ranking. The released implementation refits a weighted Bradley–Terry MLE over the full battle set for every request. For a single pair the MLE has a closed form, the similarity-weighted empirical win rate, so we implement that exactly. The per-request refit makes the general case unsuitable as an inline gateway interceptor.

2.4 Metrics

We report AUC with 2,000-sample percentile bootstrap intervals. For operating points we follow RouteLLM. At strong-model call rate $c$ , the performance gap recovered is

\mathrm{PGR}(c) = \frac{P(c) - P_{\text{weak}}}{P_{\text{strong}} - P_{\text{weak}}}, \qquad \mathrm{APGR} = \int_0^1 \mathrm{PGR}(c)\,dc .

For a binary weak-sufficed label, $\mathrm{PGR}(c)$ equals recall of the positive class among the top- $c$ scored items. The curve is therefore a recall curve drawn on a cost axis. We price with Bedrock on-demand list prices.

What prompt-only routers learn

3.1 Scale and the free baseline

Trained on 8,000 raw Chatbot Arena battles, the linear probe reaches a held-out AUC of 0.525. Prompt length alone reaches 0.530. On RouteLLM’s 110,632 labels the probe reaches 0.706 on a 16,595-item hold-out, so label count was the first constraint. On that same hold-out, prompt length reaches 0.660, and the gap is narrow: APGR 0.687 against 0.645 (random 0.506). At the operating point that recovers 80% of the quality gap, prompt length needs slightly fewer strong-model calls than the router (57.5% vs 58.0%). The router’s advantage is confined to aggressive savings. It recovers half the gap with 24.5% of calls, where length needs 31.5%.

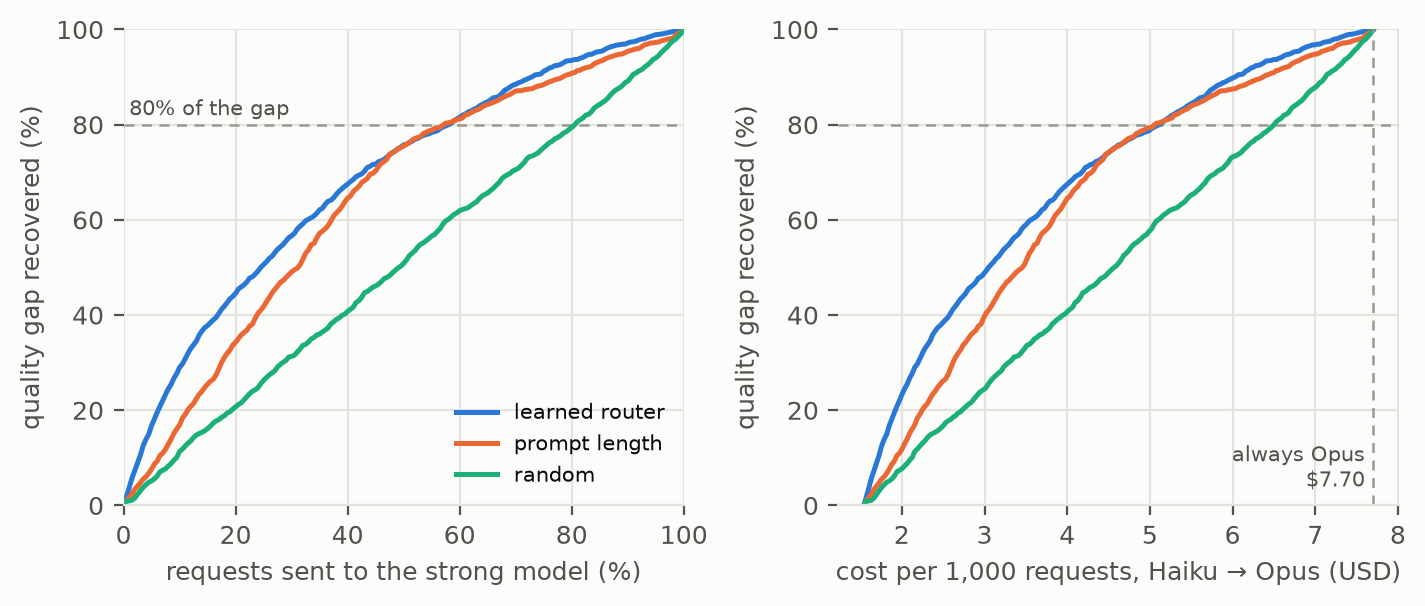

Threshold sweep on the RouteLLM hold-out

Figure 2. Quality recovered against the share of requests sent to the strong model (left) and against cost per 1,000 requests (right), priced as Haiku → Opus. The learned router leads at low call rates; the two curves meet near 57% of calls, and prompt length reaches 80% of the gap marginally sooner.

3.2 The diagnostic suite

In-distribution AUC on the cascade labels looks healthy. It is 0.744 on the mixed set, 0.842 on BBH and 0.865 with a fine-tuned encoder. Three checks take it apart.

Within-group label shuffle. Permute labels inside each group. This keeps every group’s base rate and destroys all within-group signal. Retrain on the shuffled labels and score against the true ones. Whatever AUC survives came from group recognition.

Leave-one-group-out (LOGO). Train on all groups but one and score the held-out group. The unit of analysis is the group, not the item. A single random held-out split is one draw from a wide distribution. On BBH our first seven-task split gave the router 0.512 and prompt length 0.656. Across all eligible tasks the means are 0.525 and 0.474, which reverses the ordering.

Paired cluster bootstrap. Resample groups rather than items. On each resample, compare the router against the group-rate oracle.

	real AUC	shuffled	retained	LOGO router	LOGO length	router − oracle (95% CI)
BBH (27 tasks)	0.842	0.838	99.5%	0.525	0.474	−0.021 [−0.055, +0.008]
Mixed (5 benchmarks)	0.744	0.643	86%	0.558	0.596	+0.025 [−0.046, +0.123]
MATH (7 subjects)	0.674	0.626	93%	0.600	0.679	+0.031 [−0.064, +0.142]

Table 1. Linear probe on Titan features. Every bootstrap interval spans zero. No router is distinguishable from knowing the group base rate.

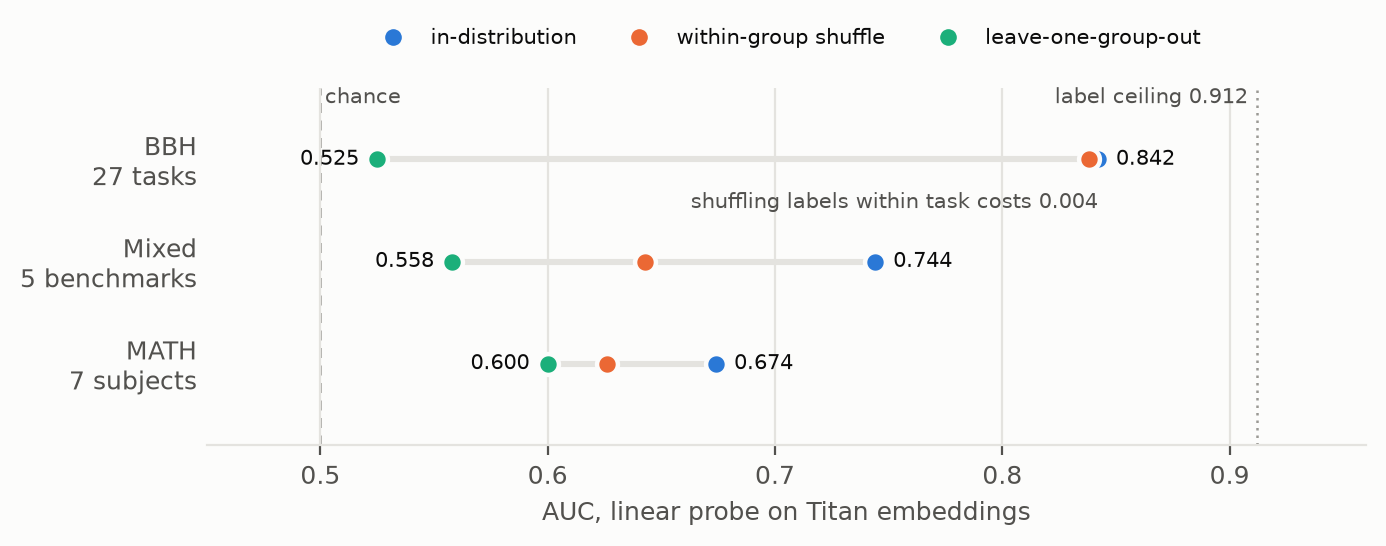

In-distribution, shuffled and held-out-group AUC

Figure 3. The same router scored three ways. Shuffling labels within each group destroys all within-group signal yet barely moves the in-distribution score; holding out whole groups collapses it toward chance. The dotted line is the ceiling the labels permit (§3.3).

On BBH the result is unambiguous. Escalation rates across tasks run from 0% (object_counting) to 83% (tracking_shuffled_objects_three_objects), and the templates make each task trivially identifiable.

When the shuffle misleads. The shuffle is weak at low positive rates when a feature correlates with group. On MATH (7.8% positive), permuting within group changes only 338 of 2,520 labels. The deferral features correlate with subject, so a model fitted to shuffled labels still recovers 0.840 of a real 0.846. LOGO shows the opposite conclusion (§6). When the two disagree at low base rates, LOGO is the diagnostic to trust.

3.3 Are the labels good enough to learn from?

A failure to generalize could simply mean the target is noise. We resampled 181 items, stratified across every (benchmark, tier) cell. For each item we drew four replicates per tier at temperature 0 and four at temperature 1, for 4,344 calls.

tier	T=0 agreement	Cohen’s κ
Haiku 4.5	98.9%	0.973
Sonnet 4.6	95.0%	0.897
Opus 4.5	95.0%	0.878

Per-call grading is highly reproducible. The composed label is less so. Rebuilding $t$ from each replicate independently, 17.1% of items change tier and 12.2% flip the binary label at temperature 0. At temperature 1 the figures are 41.4% and 29.8%. Three reliable binary decisions compose into a noticeably less reliable ordinal one, and the instability lands on boundary items, which are the ones a router must rank.

The quantity that matters is the ceiling. Scoring the soft label $\hat p(\text{escalate})$ from the temperature-1 replicates against a single-draw binary label gives AUC 0.912 [0.863, 0.956]. No predictor can exceed this against our labels. Cross-group performance sits near 0.55, so the labels leave a lot of learnable signal on the table. (The stability sample is stratified to 46% positive, so the ceiling is an estimate for a balanced mix.)

Elimination

explanation	test	result	verdict
Too few labels	8k → 110k preference labels	0.525 → 0.706	fixed; did not transfer
Wrong architecture	SW ranking; MF	0.460 on BBH (length 0.551); MF ≡ linear probe	eliminated
Representation lacks difficulty	probe level ≥ 4 within MATH subject	0.565–0.778 (mean ≈ 0.69)	eliminated
Labels too noisy	test–retest, ceiling	κ 0.88–0.97; ceiling 0.912	eliminated
Frozen encoder	fine-tune `bge-small`	LOGO 0.547 (5 folds) vs 0.525 frozen	eliminated

Table 2. Each row is a candidate explanation for the cross-group gap.

Two rows deserve comment. The representational probe shows the frozen Titan embedding carries human-assigned difficulty about as well as it carries anything. The information exists in the features, and the routers do not use it to predict escalation. The fine-tuned encoder improves both in-distribution (0.842 → 0.865) and LOGO (0.525 → 0.547) by about 0.02, well inside the fold-to-fold standard deviation of 0.085. Its one strong fold, disambiguation_qa at 0.704, is also the fold where prompt length is weakest.

Transfer across model pairs fails as well. The router trained on the 110k GPT-4/Mixtral labels scores 0.567 on the mixed cascade set, below prompt length (0.592). On BBH it scores 0.434 [0.408, 0.457], significantly below chance, so it actively misroutes. This is consistent with RouteLLM’s own report that routers trained without in-distribution augmentation perform at chance on MMLU.

What survives elimination is the formulation. The labels are learnable to 0.912, yet no prompt-only model we built reaches past ~0.60 on a group it has not seen. From the prompt alone, the models learn where a request came from rather than whether the cheap model will get it right.

The diagnostic on RouteLLM’s MT-Bench set

MT-Bench is where RouteLLM reports its headline gains. It is stratified by construction: 80 questions in 8 categories, two turns each. Using the published questions and GPT-4 judgments, we label each (question, turn) strong-needed when the judge scored GPT-4-1106-preview above Mixtral-8x7B.

category	strong-needed	category	strong-needed
coding	65.0%	stem	25.0%
math	45.0%	writing	25.0%
extraction	40.0%	roleplay	20.0%
reasoning	35.0%	humanities	10.0%

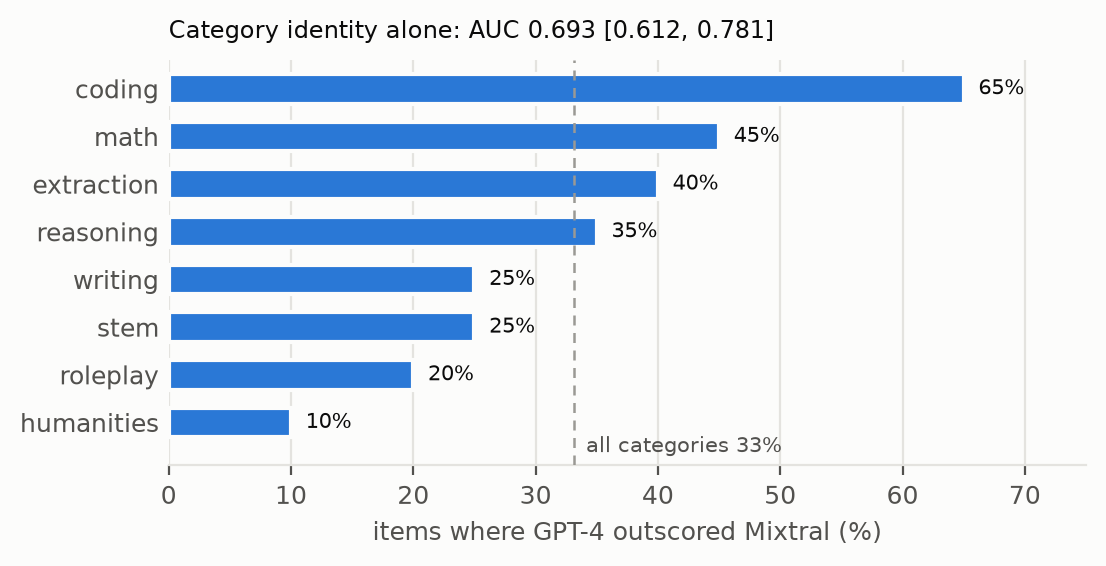

Figure 4. RouteLLM’s MT-Bench evaluation set, labeled from the published GPT-4 judgments. The base rate of “GPT-4 needed” varies more across categories than any router’s advantage over it.

Across categories the base rate spans 55 points. Category identity alone reaches AUC 0.693 [0.612, 0.781] on the published label. A router fitted to MT-Bench and evaluated one held-out category at a time averages 0.522 over seven folds.

We did not re-run RouteLLM’s released routers, because their checkpoints consume OpenAI text-embedding-3-small features. We therefore do not claim their gains are spurious. We claim only that a predictor knowing nothing about difficulty reaches 0.693 on this set. Separating difficulty modeling from category recognition requires a category-held-out evaluation, which the original evaluation does not report and which the published data make cheap to run.

A formulation that works: deferral

Prompt-only routing asks a hard question: will the cheap model succeed on this request? Deferral asks an easier one: does the answer the cheap model has already produced look like a failure? It needs no extra inference. At the moment the weak response returns, the gateway already holds everything required.

We use features of Haiku’s response: output token count, truncation, answer-marker count, and simple backtracking and hedging lexicons. We then fit the same L2 logistic model and evaluate it exactly as in §3.

LOGO mean	deferral	output tokens alone	prompt-only
MATH	0.752	0.757	0.600
Mixed	0.670	0.682	0.558
BBH	0.525	0.538	0.525

Table 3. Deferral survives leave-one-group-out where prompt-only routing does not, except on BBH.

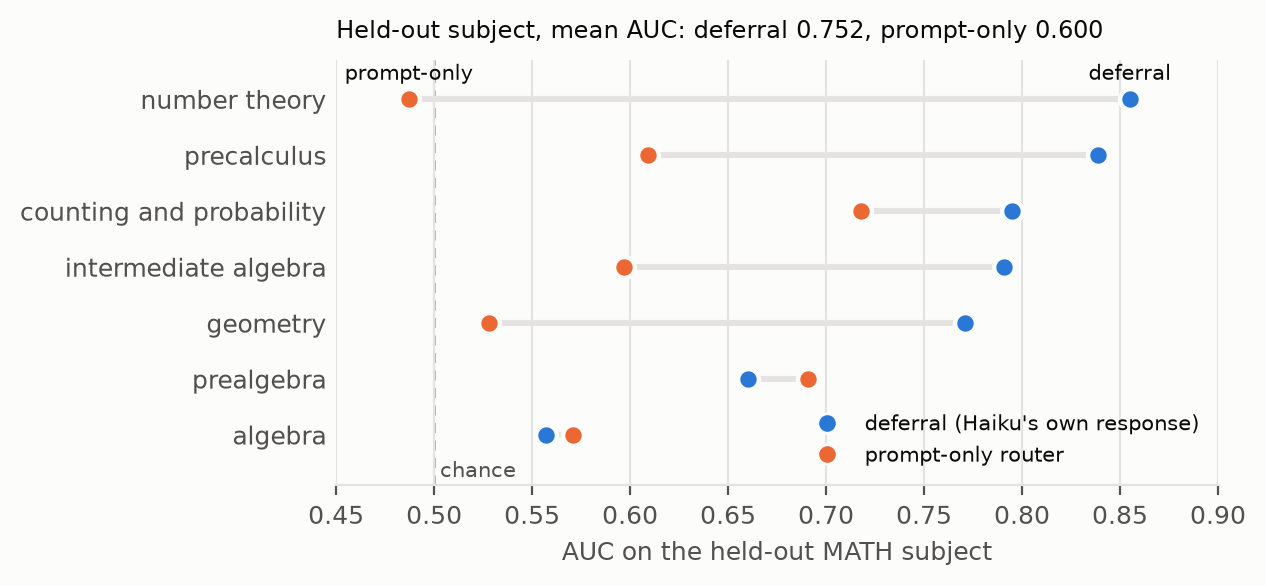

Deferral vs prompt-only by held-out MATH subject

Figure 5. Each MATH subject held out in turn. Deferral beats prompt-only routing on five of seven subjects, by as much as 0.37 AUC (number theory), and loses narrowly on the other two (algebra by 0.014, prealgebra by 0.031).

Output token count carries nearly all of the signal. A cheap model that is struggling writes more: it restarts, second-guesses and recounts. Recognizing that requires no understanding of the answer. BBH is the exception that fits the mechanism. Its templated puzzles produce answers of uniform length, so there is nothing to read. Self-consistency, meaning a second temperature-1 Haiku sample used as a disagreement signal, reaches 0.641 for one additional cheap call (measured on the stability sample, §3.3). Four samples give no further gain.

Cost. Let $R$ be the strong-to-weak price ratio and $e$ the escalation rate. Relative to always serving the weak model,

C_{\text{strong}} = R, \qquad C_{\text{defer}} = 1 + eR, \qquad C_{\text{defer+judge}} = 1 + J + eR,

where $J$ is the cost of any evaluation call. At $R = 5$ and $e = 0.122$ , perfect deferral costs 1.61 against 5.00, a 68% saving. An evaluation call at the weak model’s price leaves 48%. One at Sonnet’s price leaves 8%. Deferral is viable because its best signal is free. An LLM judge would consume most of the saving. The real cost of deferral is latency, since escalated requests pay for the weak and strong calls in series.

The largest advantage a perfect prompt-only router could ever have over perfect deferral is one wasted weak call per escalated item, or $e$ in the units above. At $e = 0.122$ that is 2.4 points of always-strong spend. Prompt-only routing is the better design in principle and the worse one in every measurement here.

Discussion

Relation to RouteLLM. We do not contradict the original results. The two studies predict different targets. Preference on open-ended chat tracks style, register and topic, which are all visible in the prompt. Exact correctness on reasoning items depends on latent problem difficulty, which is not. On the graded-correctness setting RouteLLM itself reports chance without augmentation, and we reproduce that. Our addition is a mechanism, group recognition, that explains the in-distribution gains which do appear, together with evidence that the benchmark on which the positive results rest is heavily stratified.

A router that learns the traffic mix is not worthless. If production traffic is a stable mixture of request types, “recognize the type, recall its rate” is a legitimate policy, and group-oracle AUCs of 0.69–0.84 are real money. The failure is in the claim, not the artifact. It is a traffic-mix prior with the shelf life of the traffic mix, and item-level evaluation reports it as difficulty prediction.

Recommendations. Routing evaluations should report (i) a group-held-out result with the group as the unit of analysis, (ii) a within-group shuffle where the base rate allows it, and (iii) prompt length as a baseline. Cascade labels should be built from stored responses, so that grader defects can be replayed offline, and the composed label’s stability should be measured, not inferred from per-call agreement.

Limitations

Benchmarks, not traffic. Our items are exact-graded academic benchmarks with likely training contamination. None of them resembles gateway traffic. A preference-judged sample of real chat traffic on the Claude pair is the most important missing experiment.
Backbone size. The fine-tuned arm uses bge-small (33M parameters), not the bert-base of the original. A 0.02 LOGO gain makes a larger backbone an unlikely rescue, but we have not tested one. The causal-LLM router was not attempted.
Single pair for preference labels. All 110k preference labels come from one model pair. We do not test transfer from multi-pair Arena data.
Power. Several per-group cells have fewer than 50 positives. The MT-Bench analysis has $n = 160$ .
End-to-end gateway runs. The interceptor, calibrated thresholds and metrics are deployed and tested. The routing results above are offline evaluations on stored labels and cached embeddings, not live A/B runs through the gateway. Live runs, including a deferral RESPONSE interceptor, and the configuration they need are left to a companion paper.
Pricing. Dollar figures use on-demand list prices and fixed token averages. Measured per-item token counts differ by tier and benchmark.
Exploratory analysis. The repository’s preregistration covers the gateway A/B arms planned at the outset. The cascade labels, the diagnostic suite, the stability study and the deferral analysis were designed after the first results came in, and should be read as exploratory rather than confirmatory.

Reproducibility

Code, labels and stored responses are at github.com/bfeeny/paper-to-aws-routing under the MIT license; embedding caches are regenerated by the scripts. The grader is analysis/grading.py, with a self-test. analysis/regrade_offline.py replays it over stored response tails. The diagnostics are in analysis/confound_suite.py, analysis/bert_router.py, analysis/deferral_arm.py and analysis/mtbench_diagnostic.py. Total inference spend for the study was approximately US$100 at list prices. The fine-tuned encoder was trained locally on Apple silicon.

Appendix A. Data-quality findings

A.1 Tier-correlated grading bias. The grader went through three revisions. The first scored every non-letter answer as a number. That scored 10-way MMLU-Pro options E–J, BBH strings and MATH expressions wrong at every tier, and inflated the no tier answers rate to 40.2% (5.5% correctly graded). The second failed on answers the model had formatted: Answer: **6**, \boxed{6}, 45^\circ. The cheap model formats its final answers more readily than the expensive one, so this defect was correlated with tier. It did not add noise. It manufactured escalation. Correcting it halved MATH escalation (15.6% → 7.8%) and exposed the relation with difficulty level. A grader whose error correlates with the quantity being measured does not degrade a result gracefully. It invents one.

A.2 Identical-response battles. In routellm/gpt4_judge_battles, 1,313 of 109,101 battles have byte-identical responses from both models. 1,312 of those are labeled a win for model B (Mixtral) and one a win for model A. None is a tie. Across the whole set, labels are 9.3% GPT-4 win, 68.5% Mixtral win and 22.2% tie.

References

[1] I. Ong, A. Almahairi, V. Wu, W.-L. Chiang, T. Wu, J. E. Gonzalez, M. W. Kadous, I. Stoica. RouteLLM: Learning to Route LLMs with Preference Data. arXiv:2406.18665, 2024.
